Right top and centre: Vernon Brick, Park Pit.
Bottom: Colliery brickworks by station.
Brickworks from 1845
Although Poynton lies on the edge of the Pennines and many of the earlier farms etc. were built of stone, the development of coal mining led to the extensive use of brick throughout the area. Uses were many including houses, colliery buildings and shaft linings; agricultural improvement during the nineteenth century also led to heavy demand for other clay products in the form of drainage pipes and tiles.
By 1840 brick and tile making had been concentrated close to Lower Park Farm 1 under the control of the estate agent. The 1841 census notes Job Shipton and William Shipton as brickmakers who lived close to here. After 1845 the colliery reports refer to this kiln. The tenants were supplied with drainage tiles (or pipes) and the output was 68,000 for 1845, 177,880 in 1846, and 325,300 in 1847. Bricks were used extensively in the new housing and colliery development taking place at this time and these were probably also produced at Lower Park. In 1847 64 bricklayers, tile and brickmakers were employed by the colliery.
The 1854/5 report states that£119 had been spent by the colliery on average over the last few years on drainage tiles for the tenants who cut and laid the drains at their own expense. By 1863 bricks were being sold by the colliery and in this year£549 15s 5d was owed for bricks and ironstone.
|
|

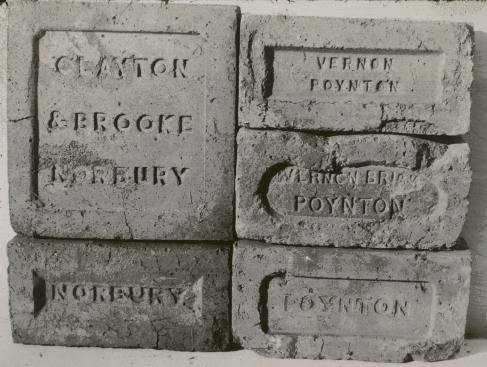

| Locally made bricks- Left; from brickworks
by Robin Hood PH, High Lane. Right top and centre: Vernon Brick, Park Pit. Bottom: Colliery brickworks by station. |
There were various types of coal-fired kiln in use and that at Lower Park was possibly a Scotch rectangular kiln. This was an updraught type with a compartment for the fire underneath, an earth bank on either side, the top open, one side openable for loading and unloading, and on the other access to the fire tunnels in a roofed over area. Woodforde describes in detail such an estate brickyard in Sussex, where the kiln could hold 17,000 to 20,000 bricks.2 Examples of local brick from this period can be seen in the almshouses near the church and Long Row on Park Lane.
A further rectangular kiln appears at Park Pit on the 1871 1:2500 O.S. map and may have been erected by Greenwell to try using pit shale in brickmaking. This kiln does not appear on subsequent maps, but soon after a larger scale brickworks was established close to the present Poynton station. First mention of this is in 1874 when Thomas Spinks the foreman at the brickyard caught his hand in the brickmaking machine.3 Greenwell commented in detail in his 1875 report:
"Extensive brickworks have been erected near the railway junction just named They have been established mainly for the purpose of utilising the pit shales drawn in the course of coal work and also for the manufacture of ordinary bricks The works comprise a steam engine with a 16 inch cylinder, Boiler, Crushing and Grinding Machinery, pug mill and brick making machine (Morands). The machinery was made by Messrs. Easton and Tattersall of Leeds. It is now making good bricks but has been very troublesome chiefly owing to its parts not being sufficiently strong and to other defects in construction. These have apparently been remedied and I hope there will be no more drawbacks. The machine will by fair going make 2 million bricks, per annum, at a labour cost of 10s per thousand.
A brick drying shed in which the drying is effected by the exhaust steam of the engine has also been put up: the application of the steam has been quite successful. A patent brick kiln (Pollock & Mitchell) with 8 chambers has also been built with a chimney 120 feet in height- This is not yet in full operation but the burning has been commenced: it will probably have to be burnt off a time or two before the bricks will be as hard as they ought to be.
The cost of the brickworks has been about£3000".4
The 1871 1:2500 O.S. map indicates that a small scale brickworks with two
rectangular kilns had already been working on this site but this new development
was on a completely different scale.
 |
|

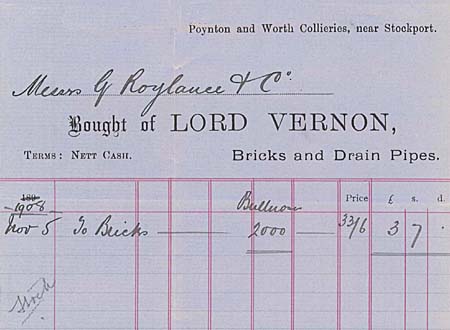

| Invoice for bricks from colliery brickworks by station. |
This works settled down to producing bricks and tiles in fairly large numbers (see table). In 1877 bricks were used for the new gasworks adjacent and for alterations at Beechfield, Greenwell's house. Two years later a new machine for making drainage tiles or pipes was installed along with new dies for brick and pipe machines, and cast iron plates were laid on part of the drying shed floor. Production of drainage tiles was commenced due to low prices for bricks and little local building. In 1880 competition kept brick prices low but tiles sold well. By 1882 a decision was made to make pressed bricks and special bricks in order to improve sales; a new round kiln 16' wide similar to the kiln at Sudbury was also built at a cost of£85.
Soon after trade improved and many bricks were sold for a new mill at Stockport. New clay supplies were obtained by building a tunnel under the railway to a field on the west side where it was hoped that better quality material would be found. A tramway through this tunnel brought clay to the works and a donkey was used to pull the loaded tubs. This tunnel survives, being 62" wide with a semi-circular arch three brick courses thick. Unfortunately Greenwell reported in 1883 that the clay was not as good as he had hoped. In that year production of 391,000 bricks and 313,200 tiles cost £502 in wages,£177 in coal, and£76 for materials, repair and maintenance.5 Large numbers of bricks were used in the new works at Park Pit and also for the new Poynton Station although hopes for orders during the widening of Stockport viaduct were dashed when the LNWR used its own bricks from Crewe and Staffordshire blue bricks for facing. Repairs were needed to the brick machine in 1886 and work was held up for two months in 1888 when a new pan and grinding wheels were required.
The brickworks staff in 1887 was as follows:
J. Rhodes, Manager, 42s per week.
Two men 4s 6d per day.
Eight men 3s 2d to 3s 6d per day.
Three boys 1s 2d to 1s 10d per day.6
Rail costs for transporting bricks were high making them uncompetitive at long distance and so success continued to depend mainly on internal colliery and estate use and local building. Greenwell said in 1892 that it was worth keeping the brickworks in working order to meet these two needs and secure a return from the capital invested, although no further large colliery or cottage building was carried out. In 1897 trade again improved and Greenwell was able to write:
"The brickworks have been fairly well employed during the year, partly in consequence of requirements in connection with the Macclesfield Corporation Sewage Disposal Works at Prestbury. I do not anticipate that there will be sufficient local demand to keep them anything like as well employed this year".7
Brickworks output and profit 1875-97
| Year | Bricks | Tiles | Profit | Year | Bricks | Tiles | Profit | |
|---|---|---|---|---|---|---|---|---|
| Sold | Sold | £ | Sold | Sold | £ | |||
| 1875 | -399 | 1887 | 848088 | 313976 | 511 | |||
| 1876 | 97 | 1888 | 728231 | 155007 | 221 | |||
| 1877 | 442 | 1889 | 918660 | 241339 | 276 | |||
| 1878 | 107 | 1890 | 859422 | 175484 | 218 | |||
| 1879 | 961382 | 349 | 1891 | 965478 | 96121 | 330 | ||
| 1880 | 291379 | 146496 | 157 | 1892 | 1021553 | 121369 | 285 | |
| 1882 | 684450 | 200805 | 146 | 1894 | 759890 | 144180 | 309 | |
| 1883 | 435587 | 279822 | 275 | 1895 | 784378 | 99539 | 286 | |
| 1884 | 602250 | 206231 | 265 | 1896 | 1366876 | 168743 | 479 | |
| 1885 | 844060 | 85417 | 327 | 1897 | 1142020 | 87199 | 278 | |
| 1886 | 1077666 | 131103 | 372 |
The brickworks continued on similar lines for some years but had closed by 1920 when it was offered for sale along with most of the Vernon Estate. The 1:10560 O.S.map of 1910 shows the main buildings the same as in 1897, but a third circular kiln had been added. By 1920 the kilns and railway siding remained but the building which housed the machinery had gone. Today the main site is a mixture of scrub, water filled pits and some foundations, whilst the clay field on the other side of the railway has been levelled and made into a park.
At Park Pit brickmaking recommenced in 1937 after the closure of the collieries. A private company, the Poynton Brick Co. used shale from the colliery tip to make bricks using an open topped kiln of the Scotch type. In the 1939 Directory the works is described as run by the Vernon Brick Co., and soon after was taken over by J & A Jackson. The machinery was situated in the old colliery power house and the bricks with "Vernon Poynton" on the face could still be found in the press until the works was demolished in the early 1970s. The plant was electrified in 1956 and the kiln had a top put over it, but production ceased in 1958. Maximum output was 65,000 bricks per week.
 |
 |
|

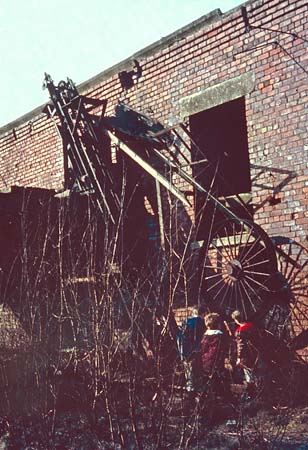

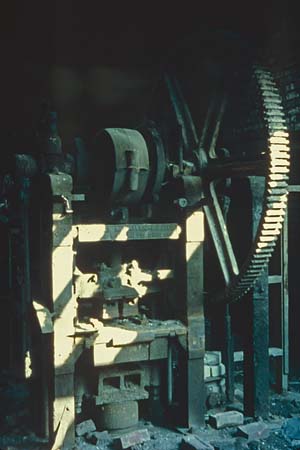

| Brick making machine at Park Pit in former power house. 1964 | Elevator outside former power house . 1964 |

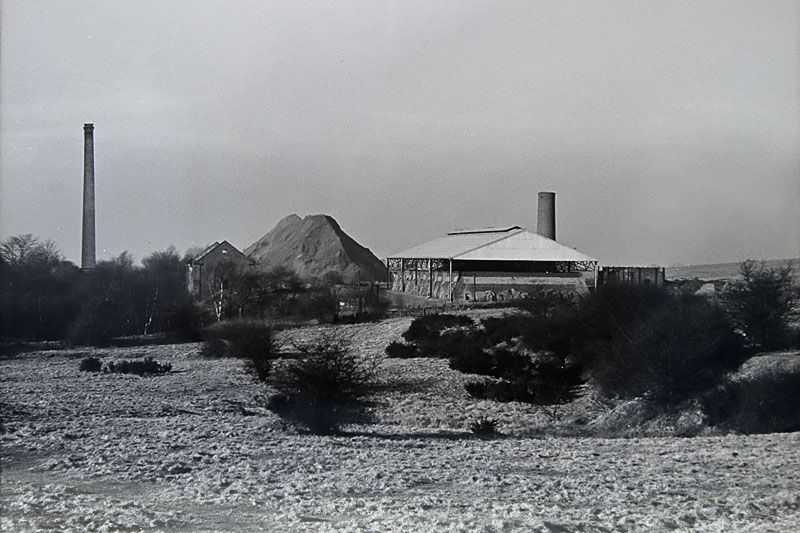

Brick kilns at Park Pit, 1958. Photo © Alan Hulme
 |
| Brick kilns at Park Pit. Former power house can be seen over kilns at left centre. |
 |
| Kiln at Jackson's Brickworks, Pool House Road. c1970 |
The other brickworks in Poynton was that of the Poynton Brick Company situated
north east of Pool House Road, which was established in 1924 by a group of local
tradesmen. A Mr. Tomkinson was brought in as manager from claypits nearby. Success
was elusive and in 1929 J. & A. Jackson of Adswood took over and reopened the
works from 1934 to 1938. Increasing demand led to reopening from 1947-53 and
then the works was modernised with mechanical handling methods in 1958, when
it could make 160,000 bricks a week using shale imported from Bredbury, Pott
Shrigley and Kerridge. In 1974 Christian Salvesen took over the firm which was
then making up to 180,000 bricks a week. The works was closed in October 1979,
when production was transferred to Denton, and has now been demolished. Bricks
made at the brickworks near the station can be seen in many places including
the old locomotive shed at Hockley, terraced houses dated 1891 and 1892 in Park
Lane and London Road South and the Lady Pit winding engine house. Vernon bricks
are numerous and examples can be picked up at Park Pit amongst the rubble.
Gasworks and gas supply
Gas production is an activity closely associated with coal mining, and it is not surprising that a gasworks was established by the collieries during the second quarter of the nineteenth century.
The first gas works in Poynton appears in the 1849 survey and map. It was situated on the north side of the colliery railway close to the level crossing on London Road. A short siding had been installed to bring in coal and remove waste and by-products. Although Ashworth makes no mention of this works in the colliery reports at this time, it is probable that it was established at the time that the railway was built in 1845 when coal could easily be transported to it. The 1871 1:2500 O.S. map shows a small range of buildings and one gasometer with possibly a chimney close by.
Little more is known about the first gasworks, but by 1875 changes were afoot. G.C. Greenwell wrote in that year:
"The Gas Works require considerable extensions and it has been considered desirable to move them away to the junction between the Poynton private railway and the London and North Western Railway. The pipes for this purpose have been ordered 6 inches in diameter and about ¾ths of the quantity have been delivered.
The cost of what has been done is£1638 and the completion will probably be£1500 in addition".8
In 1876 gas fittings were installed in the schools at Poynton
Green whilst a year earlier the Baptist Church in Park Lane was fitted with
gas heating at a cost of£300.
 |
|

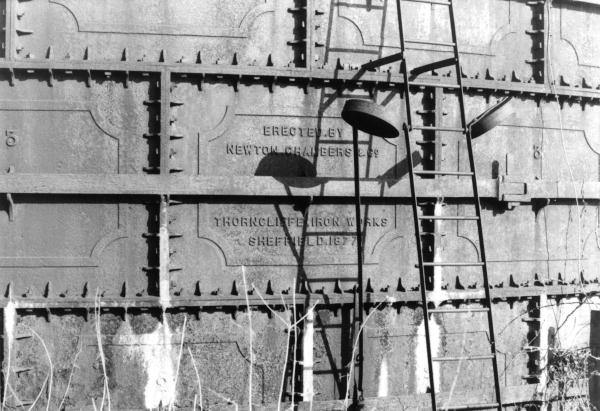

| The gasholder supplied in 1877, now at Hilltop Farm, 1982. |
Expenditure on the new gas works totalled£4905 by the end of 1878. The plant was supplied by Newton Chambers & Go. of Thorncliffe Iron Works Sheffield and engineers Easton and Anderson appear to have supervised the work. It was not until 1877 that the new works went into production and during the next year or two the emphasis was on laying more pipes. Some pipes came from Stockport Gas Works and may have been second hand. During 1879 gas to the value of£334 was supplied but the cost of production was£368.
Profits were hard to achieve at first but by 1885 a satisfactory profit was made despite low production, In 1886 a profit of£152 Was:
"Fairly satisfactory taking into consideration the small quantity of gas consumed and the further fall which has taken place in the value of tar and liquor".9
New retorts were installed during the year and it was hoped to increase consumption as soon as possible. Further mains were to be laid at the same time as the new water pipes and by offering a reduced price to cottagers it was hoped that economies of scale could be achieved. A note in the Stockport Advertiser expressed customers' dissatisfaction with the current price of 5s per 1000 cu. ft. and 1s per quarter meter rent. Many villagers were said to be unable to afford gas.
The problem was and continued to be that the gas works was capable of producing a large amount of gas, but low demand kept prices high whilst high prices kept demand low. When the new station was built the LNWR was only charged 3s 6d per 1000 cu. ft. to light the station and coal yard but it was not until 1891 that the general price fell to 4s. Consumption immediately rose by 10½% and in 1892 topped 2,000,000 cu. ft. reaching almost 3,000,000 by 1897. By 1893 the church was using gas and in 1897 the new shirt factory of E.R. Buck was also supplied with gas at a special rate of 3s 3d per 1000 cu. ft. and would probably be a large consumer.
Although detailed accounts are not available after 1897 the steady increase
of gas usage must have been maintained. The first street lighting in Poynton
was the 1897 Jubilee Fountain and Lamp Standard and over the next thirty years
further lighting was slowly installed. Profits for l9l4-19 averaged£647 per
annum which was considerably better than in earlier years.
 |
|

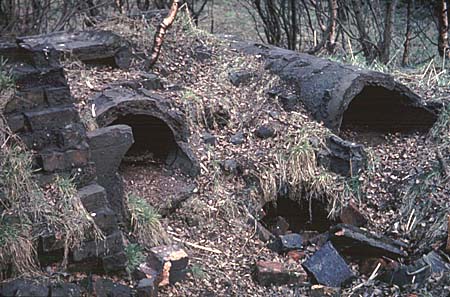

| Derelict retorts at gasworks 1964. |
The gas works was offered for sale in 1920 along with most of the Vernon estates and the catalogue gives a detailed description of the whole enterprise:
"THE POYNTON GAS WORKS situated adjoining the Poynton Station (L & N. W.R.) and embracing an area of about la. 1r. 21p. THE PROPERTY comprises: The Brick-built and slated Meter House fitted with Meter for recording the making output, by the Gas Meter Company, Oldham; two sets of Purifiers and Lime Store, adjoining Iron Gas Scrubber.
Brick and Slated Engine House containing Andrew's Stockport Gas Engine and Exhauster.
Retort House also Brick built and Slated, containing four sets of five Retorts, Cistern and Hydraulic Gas Mains, leading to a Set of 15 Coolers; at side Brick and Slated Office.
Adjoining the Retort House is a Large Open Goal Store with Corrugated Roof, Vertical Steam Boiler, Brick and Slated Governor House fitted with Parkinson's Station Governor; there are two Gasometers estimated to be capable of holding 60,000 and 40,000 cubic feet of Gas respectively.
A Railway Siding is taken off the Colliery Railway, which in turn connects with the L. & N.W.R. Railway's System.
THE WORKS ARE FOR SALE AS A GOING CONCERN To include all pipes, excluding any Stocks of Coal, Coke or Clinker remaining at the date fixed for completion".10
The works was withdrawn before the sale took place presumably because the new Poynton Collieries Company decided to run them as an associated enterprise. In 1921 the valuation list gives a value of£438 per annum for the works, gasholders and mains. When the collieries closed in 1935 the gas works was sold to the Stockport municipal authority and in October 1935 Stockport gas was connected to the mains for all Poynton users. On the day of the change the remaining gas in the Poynton gasholders was allowed to escape into the air and the works closed down. The only difference for the 1200 or more consumers was a slight increase in pressure and a substantial reduction in price from 6s 5d per 1000 cu. ft. to 3s 6d with a special rate of 1s 6d for industrial use and central heating.
Some remains can still be seen on the site of the gasworks including derelict
retorts, a gas holder pit and the perimeter wall. The first gasholder was removed
to a site near Hilltop Farm (SJ 950832) where it was fitted with a new concrete
top and used as a water tower. Although no longer used it still stands and the
cast iron makers' plates of 1877 are a fitting memorial to the Poynton Gasworks.
 |
| The base of the gasholder can still be found at the back of Poynton Station, 1982. |
 |
| Derelict retorts remain at the gasworks site, 1982. |
Poynton Gas Works output and profit 1880-1897
| Year | Consumption | Profit | Cost of | Tons of |
|---|---|---|---|---|
| cu. ft. | £ | Manufacture £ | coal used | |
| 1880 | 1,136,700 | 21 | 421 | |
| 1881 | 1,386,400 | 107 | 340 | |
| 1882 | 1,594,700 | 193 | 332 | |
| 1883 | 1,510,400 | 173 | 376 | |
| 1884 | 1,558,000 | 181 | 336 | |
| 1885 | 1,581,300 | 161 | 340 | |
| 1886 | 1,555,200 | 152 | 320 | 340 |
| 1887 | 1,653,000 | 175 | 295 | |
| 1888 | 1,592,000 | 176 | ||
| 1889 | 1,536,800 | 139 | 326 | |
| 1890 | 1,577,200 | 169 | ||
| 1891 | 1,824,900 | 190 | 385 | |
| 1892 | 2,017,200 | 91 | 446 | 390 |
| 1893 | 2,010,700 | 126 | 403 | 377 |
| 1894 | 2,225,200 | 177 | 455 | |
| 1895 | 2,490,200 | 202 | 477 | 408 |
| 1896 | 2,595,500 | 258 | 534 | 436 |
| 1897 | 2,936,000 | 322 | 493 | 454 |
